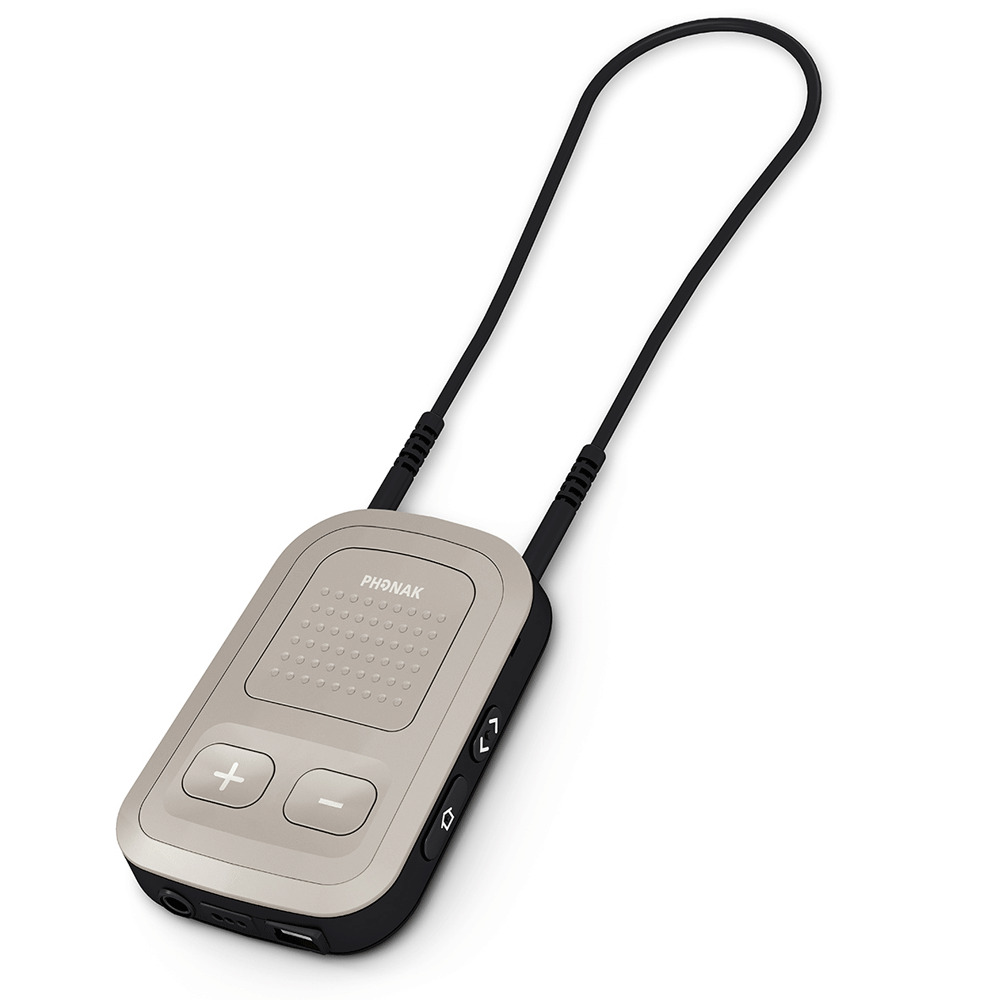

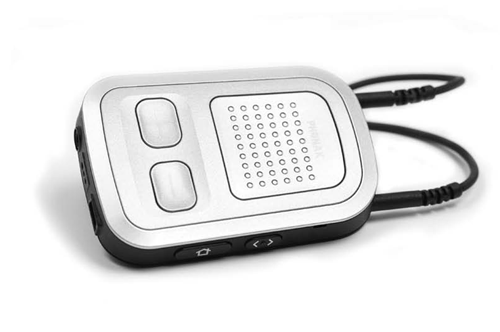

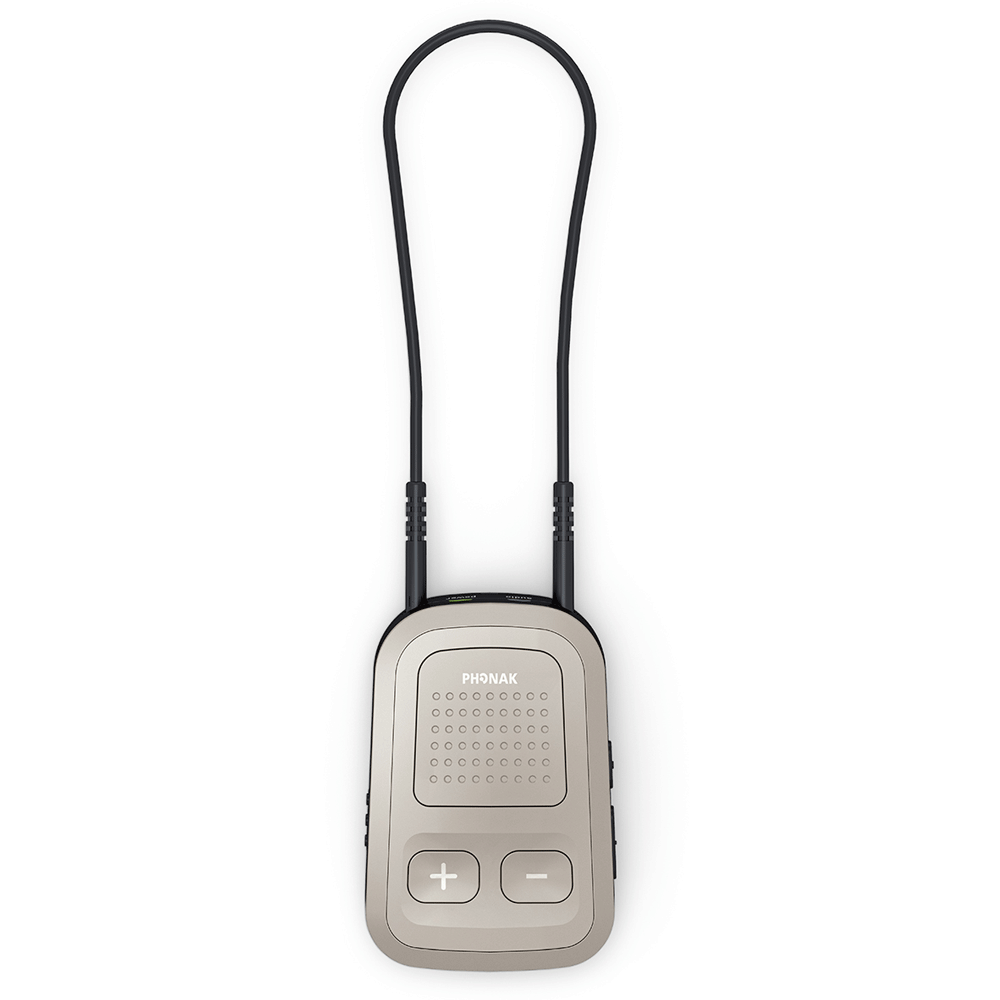

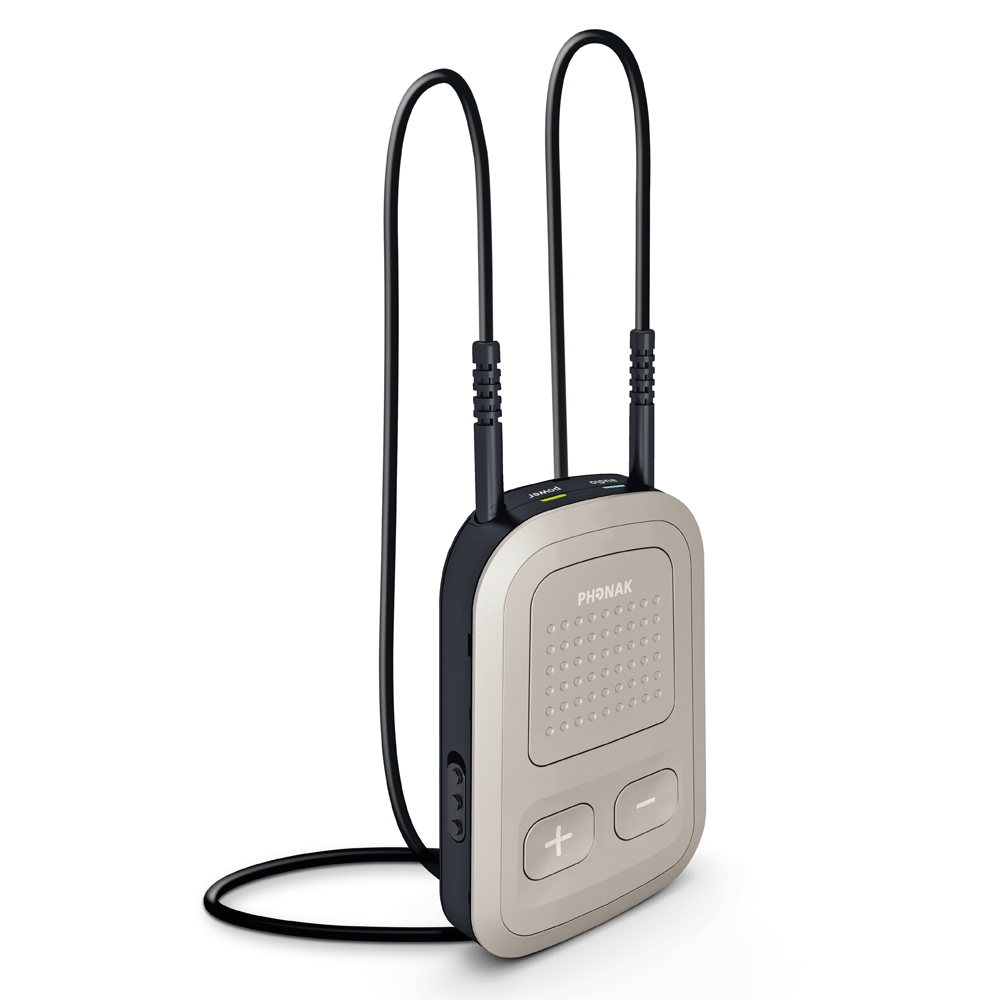

Phonak ComPilot II - The smart 3-in-1 accessory

Phonak ComPilot II is your perfect 3-in-1 companion, offering true convenience, wireless freedom and the reassurance of VoiceAlerts, spoken messages. ComPilot II provides easy wireless access to TVs, MP3 players and phones to name but a few - additional items may be required, see below. It guarantees stable connectivity, best voice quality for phoning and keeps hands free.

The ComPilot II is only compatible with the following Phonak Venture & Belong hearing aids: Audéo V, Bolero V, Virto V (excluding nano and NW 0), Naida V, Sky V, CROSS II, Audéo B, Bolero B, Nathos Auto, Sync HP and Sync Micro HA's.

Please note that the Phonak ComPilot II does not operate with non Phonak hearing aids.

The built-in remote control is designed for ease of use with convenient program and volume changes. Also includes the benefit of spoken messages, making it easier than ever to interact with your hearing aids.

Phonak ComPilot II key features:

• Bluetooth and wired audio inputs

• Up to 24 hours continuous streaming time

• Binaural streaming of audio signals in stereo

• VoiceAlerts for easy interaction

The Phonak ComPilot II gives you the following possibilities:

• Hands free mobile phone conversations via Bluetooth - connect more than one phone at a time

• Listening to TV sound - TVLink II adaptor available separately
• Listening to audio (e.g. music) from a radio, PC, MP3 player etc.
  wired to ComPilot II - connecting lead available separately
• Listening to audio (e.g. music) from a wireless stereo device via Bluetooth
• Listening to a person - RemoteMic II available separately
• Remote Volume Control of some specific models of hearing aid (see below)
• ComPilot II is also compatible with Phonak’s range of ear level receivers (such as Roger X) via its Europlug socket.  Connecting a radio system via a ComPilot II can offer a convenient way of connecting a radio aid for users in home and work situations.  However, ear level receivers (for example Roger 17) connected directly to hearing aids or implant processors offer a number of practical advantages for children in educational settings.


Please note - the ComPilot II is easy-to-use for audio streaming, straight out of the box.

However for the remote control feature to work, the ComPilot II needs to be set up with your hearing instruments by your audiologist or hearing aid dispenser. Before purchasing a ComPilot II for use as a remote control, you need to contact your hearing aid distributor and confirm that they are happy for you to make an appointment for them to set up your equipment.



Phonak part number: 076-0023-P509

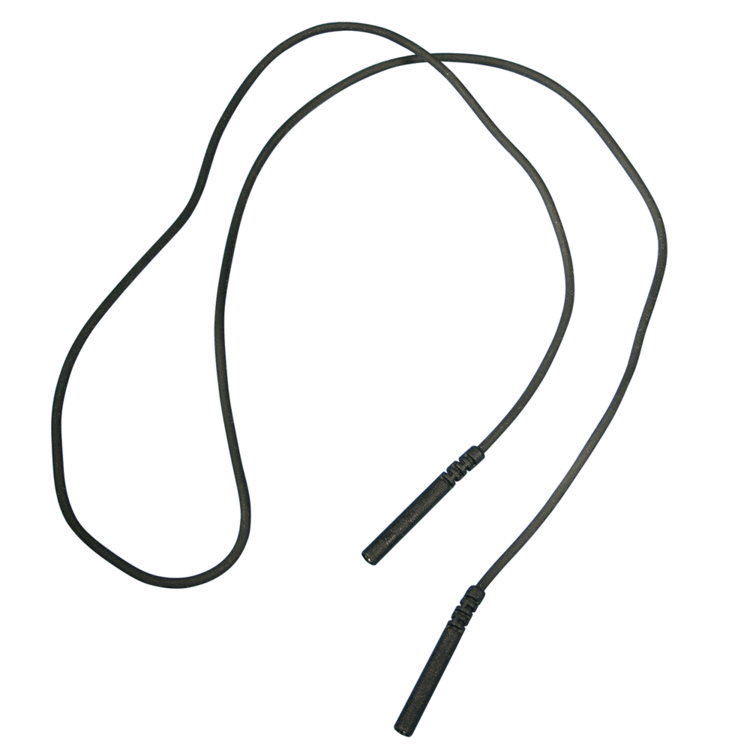

Includes: ComPilot II inc neck cord, power supply & user guide

Power Supply: 100 – 230 V ac 50-60Hz. UK, EU & USA plug options.




Technical information:

Dimensions: L x W x H: 7.2 x 4.9 x 1.4 cm
Weight: 46 g
Colour: Champagne/black
Operating conditions: 0o C to +45o C / < 95% relative humidity
(non condensing)
Storage and transportation -20o C to +60o C / < 90%
conditions: relative humidity (non condensing)

Power and battery information
Battery:Lithium Polymer 3.7 V DC
Charging time: 90 minutes
Charging time depends on initial battery state. Full performance is achieved after three complete charge and discharge cycles.
Capacity: 450 mAh (typ.)
Operating time: Up to 24 hours Bluetooth streaming
1 week switched on, Bluetooth on stand-by
Up to 24 hours audio streaming via cable
Up to 24 hours streaming via FM system
2 weeks remote control

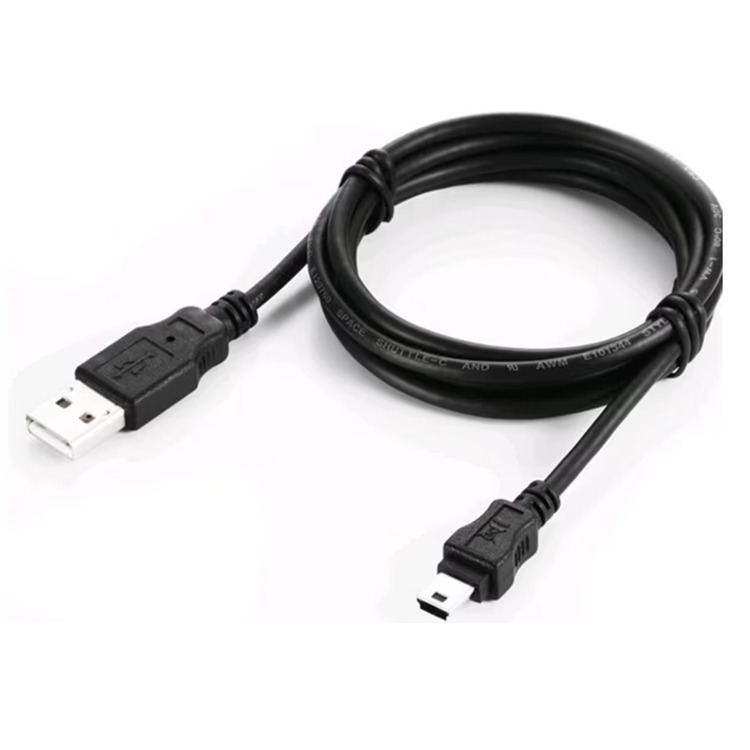

Charging input: Type: DC, stabilized 5 V +/- 5%. MiniUSB
Max. current: 500 mA.
The battery cannot be over-charged. It may become warm during charging.
Important notice: It is recommended to only use the original Phonak charging unit.

Audio information
Audio input supported:
- Wired (3.5 mm jack)
- Bluetooth audio (stereo)
- Bluetooth phone
- Direct audio input

Audio quality: Stereo / 22 kHz sample frequency
Audio bandwidth: 20 Hz – 10 kHz

Bluetooth
Bluetooth profiles supported:
- Headset Profile (HSP)
- Handsfree Profile (HFP)
- Advanced Audio Distribution Profile (A2DP)
- Audio Video Remote Control Profile (AVRCP)
- Phone Book Access Profile (PBAP)
Bluetooth range: 10 m (Class 2)
Bluetooth compliance: Bluetooth version 4.1 + EDR / +LE
Max. paired devices: 6
Maximum of simultaneously connected profiles:
- 3 A2DP
- 2 HSP/HFP (usually 2 cellular phones and 1 TVLink II or RemoteMic II)



Click here to view the product user guide

Click here to view the product datasheet

For further information about Bluetooth, visit www.bluetooth.org

Click here to view information about how to pair the ComPilot with your mobile phone

Important Update Regarding RemoteControl App



International warranty for Phonak equipment purchased for use outside of the UK.

Phonak offers a one-year limited international warranty, valid as of the date of purchase. This limited warranty covers manufacturing and material defects. The warranty only comes into force if proof of purchase is shown.

For customers using Phonak equipment outside the UK, in the unlikely event that your equipment requires repair it may be returned directly to your local Phonak service centre.
