The Oticon Medical Streamer is part of the ConnectLine range. It is the key to the ConnectLine, working as the connectivity interface for the Oticon Medical implantable hearing solutions eg Ponto - currently compatible with Ponto Plus, Ponto Plus Power and Ponto 3. Note - this Streamer is NOT compatible with Oticon hearing aids or the Ponto 4 (which can be used with the Oticon ConnectClip instead).

It wirelessly connects the Ponto Plus to audio sources for communication, entertainment and information purposes, such as a mobile phone, landline phone, TV, music player, PC, etc.

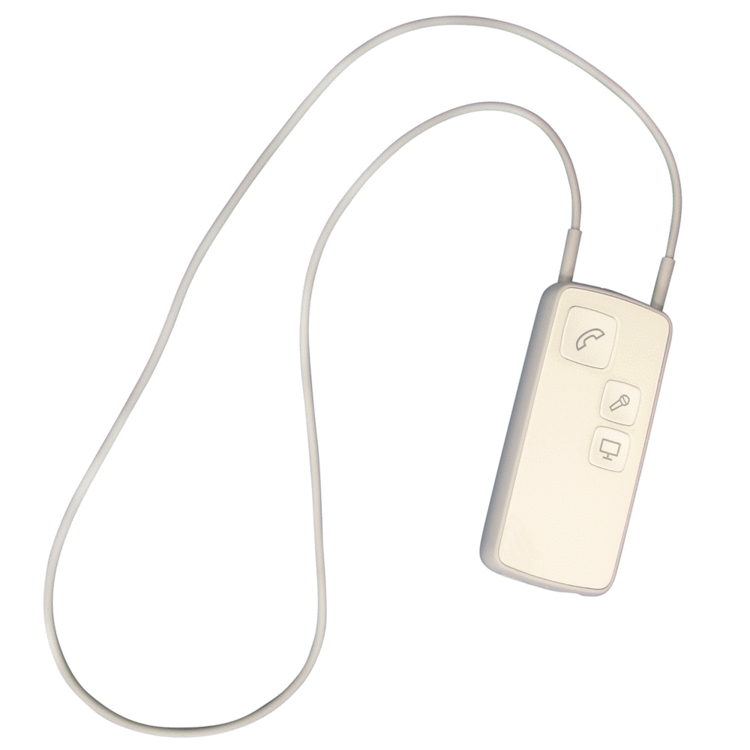

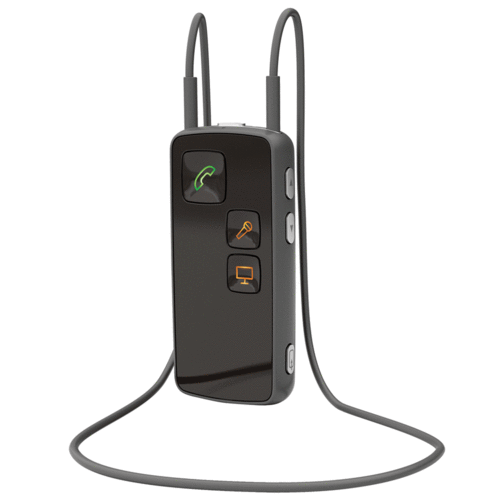

The Oticon Medical Streamer is worn around the neck and connects your Ponto wirelessly to different audio sources and makes them work like wireless headphones.

The Oticon Medical Streamer transmits the sound directly into both Ponto  instruments and thereby improves the audio experience by giving excellent sound clarity.

This latest generation of Oticon Medical Streamer connects to Android devices plus iPhone®, iPad® and iPod touch® via the free Oticon ConnectLine App!

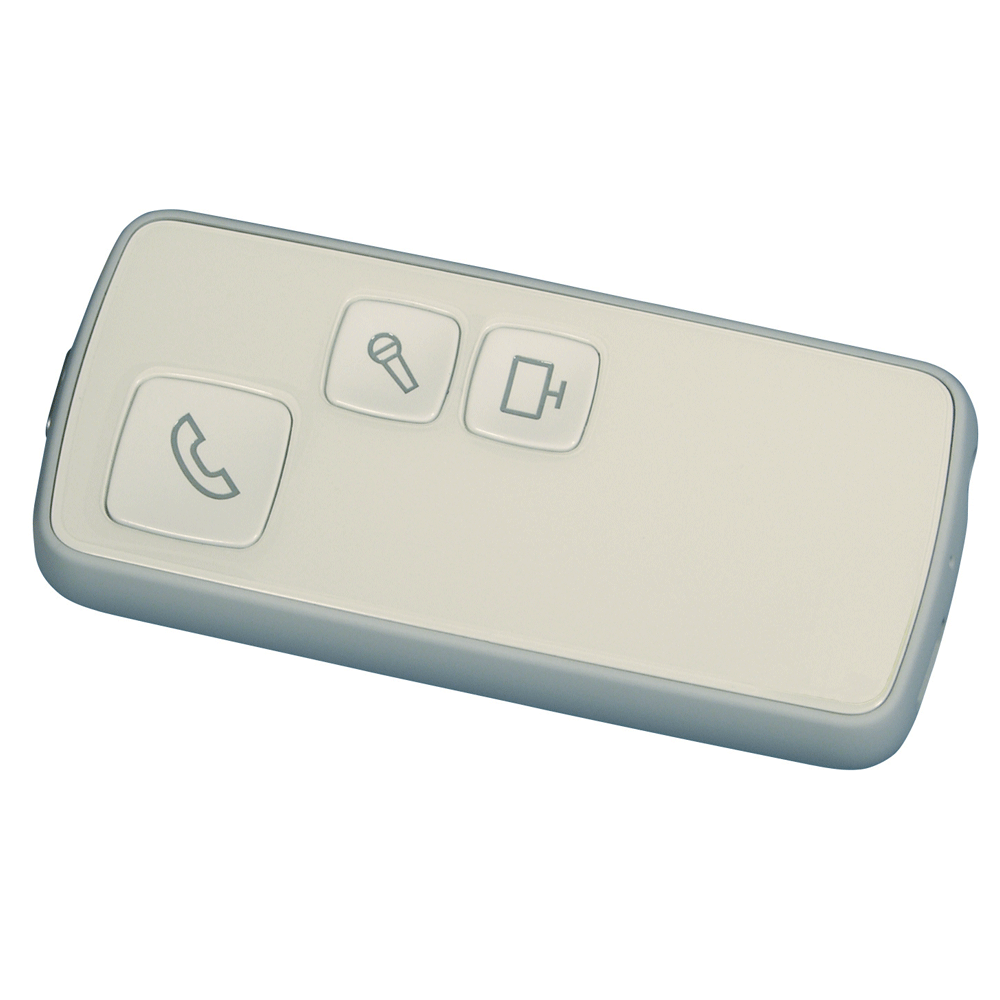

The Oticon Medical Streamer is the core in the ConnectLine system where easy, convenient daily use is in focus. It features simplified buttons for the 3 core connectivity applications: ConnectLine phone, TV and microphone up to 8 hours of streaming for a full day's use.

Oticon Medical Streamer gives you the following possibilities:

• Hands free home phone conversations - ConnectLine Phone adaptor 2.0 available separately
• Hands free mobile phone conversations -connect up to two phones at a time
• Listening to TV sound - ConnectLineTV adaptor available separately
• Listening to audio (e.g. music) from a radio, PC, MP3 player etc.
  wired to Streamer Pro
• Listening to audio (e.g. music) from a wireless device via Bluetooth
• Listening to audio from an induction loop (eg. theatres, churches etc)
• Listening to audio from an FM system - FM receiver available separately
• Remote Volume Control and Programme Shift in the hearing instruments

Features

Quality sound streaming
Streamer uses the digital EarStream technology to transmit real time audio
directly to the instruments. The benefit is a 10 kHz undistorted, crystal clear audio signal.

A fully integrated system
In the ConnectLine system, Oticon Medical Streamer identifies all other ConnectLine devices (purchased separately, see Associated Items on Right) connected and ensures that the desired audio source are heard when needed.
The Ponto Plus needs no operation by the user but will automatically switch to the correct program dedicated the selected audio source.

Personal wireless headphones
When a set of hearing instruments is linked to Oticon Medical Streamer, audio is transmitted directly and securely to one or both Ponto Plus. The Ponto Plus resembles miniature wireless headphones, custom tailored to the user’s hearing loss.

Ease of use
The AutoConnect feature makes sure that other ConnectLine devices and mobile phones are always connected and ready for use. Just turn on the ‘Connect’ function and all ConnectLine applications are easily controlled by pressing one button on Oticon Medical Streamer. Controlled by AutoPriority, 4 wireless devices can stay connected and be used seamlessly.

When not used for audio streaming, Oticon Medical Streamer also functions as a remote control for volume control and program shift.

Bluetooth technology
The Oticon Medical Streamer has built-in Bluetooth technology for wireless connectivity to ConnectLine devices and supports all relevant Bluetooth profiles. Bluetooth is a commonly used global standard for mobile phones and offers a transmission range of up to 30 feet.

ConnectLine App for iPhone & Android

With just a few taps, you can set the perfect sound levels for your phone, music player, TV and any other devices you’d like to connect with. Switching between different applications is seamless. Just swipe from one to the other and it’s done. The large volume controls mean you can make adjustments in a second – so you get the sound levels you want, instantly.

The App is available to download free of charge via the Google Play Store, Apple Store or iTunes

Click here to view an up-to-date list of compatible mobile phones recommended by Oticon

Click here to view an up-to-date list of known compatibility issues with different mobile phones*

*There are known issues with Huawei smartphones - please check the compatibility list above to see if your smartphone make & model are listed.

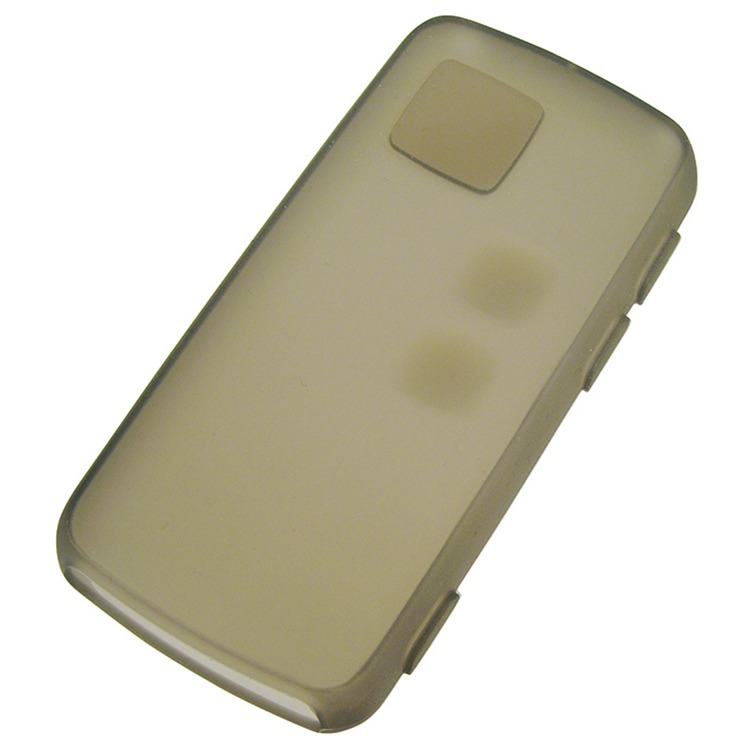

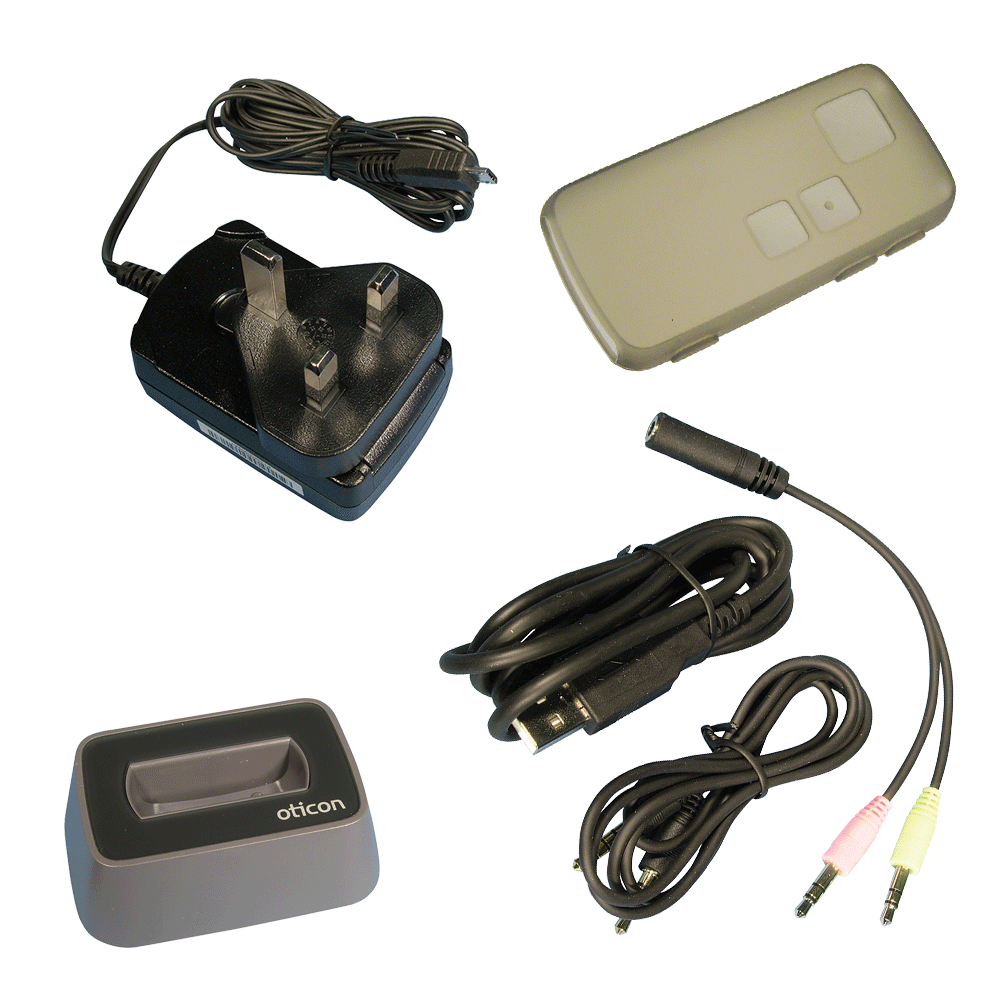

Supplied with: grey Neck straps (medium and long)*, UK Power adapter for charging, USB PC-charger cord, PC/Audio interface cable kit, Protective silicone skin.
* The neckstrap is part of the system, and should always be used for best possible performance.


Oticon Medical part number: 155373 (white), 155372 (black)

The Oticon Medical Streamer doesn't need to be set up with your Ponto - it is ready to go straight out of the box.



Technical data

Dimensions 13 x 40 x 85 mm
Weight 44 g (without neck loop)
Battery Built-in, rechargeable battery
Battery life
Typical daily use 10 hours: 6 hours TV streaming + 2 hours phone/other + 2 hours standby (from 100% to 80% capacity)
60 h stand-by (Turned on, no Streaming)
6 months when remote only (from 100% to 80% capacity)
Battery total life expectancy 80% capacity left after 720 charge/re-charge cycles.
This translates to minimum two years of typical usage
Charging time Charge time 2 hours (from 80% to 100% capacity)
AutoConnect Yes (30 feet)
AutoPriority Yes
Streaming frequency 3.84 MHz
Dedicated ConnectLine solutions ConnectLine Microphone (requires additional equipment), ConnectLine Phone 1.0 and 2.0 (requires additional equipment), ConnectLine TV (requires additional equipment)
Other connectivity solutions Analogue input (3.5 mm mini-jack), Analogue output (3.5 mm minijack) for PC headset interface (VoIP/Skype), Mobile phone headset (Bluetooth handsfree or headset profile), Streaming/wireless music (Bluetooth A2DP), FM input (Europlug), Telecoil (built-in).
Remote control of Ponto Plus Volume, program shift and mute of Ponto Plus microphones.
Bluetooth compliance Ver. 2.1 + EDR
Bluetooth Profile support Advanced Audio Distribution Profile (A2DP) 1.2, Head Set Profile (HSP) 1.2, Hands Free Profile (HFP) 1.6
Paring details up to 8 at the same time. Up to five active wireless devices supported at once (2 phones, 1 TV adapter, 1 microphone and 1 A2DP). Only one source can be listened to at once.
Wireless range 10 meters with Bluetooth Class 2. Up to 30m with ConnectLine Phone adaptor 2.0. Up to 15m with ConnectLine Microphone
Dual microphone noise reduction The Ponto Streamer has two microphones. This enables suppression of surrounding noise - in the signal sent to the person the Ponto user is talking to.
EarStream range 0.5 meter nominal. Neck loop should be used for best possible performance.
Signalling range Incoming call alerts and remote control commands up to 1m.
Audio Quality Mono / 20 kHz sample frq
Audio Bandwidth 80 Hz - 10 kHz (A2DP/line-in)
Status indications LEDs on the Streamer. Acoustic signals in Pontos.
Colors Black, White
Emissions Max. -15dB?A / 10 meters, In compliance with all relevant standards
Operating temperature 10 - 45 °C
Storage temperature -20 - 70 °C

Currently compatible with Ponto Plus, Ponto Plus Power and Ponto 3.

Click here to view pdf user guide

Click here to view pdf information

Click here to view an up-to-date list of compatible mobile phones recommended by Oticon

Click here to view an up-to-date list of known compatibility issues with different mobile phones

Note: Oticon does not manufacture a car charger. You can however safely use a car charger with a standard USB power specification. The Streamer is specified to 5V DC 200mA. (A standard USB port 5V DC 500mA).
